产品名称:SATA转接卡
型  号:HT-170VIA
 点击查看大图片

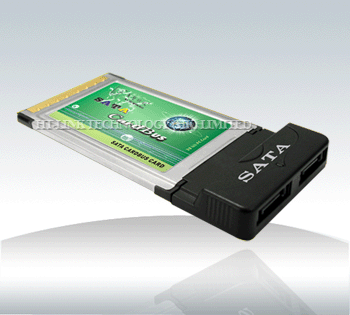

Product: SATA 2-Channel CardBus
Model: HT-170VIA
Interface: CardBus
Weight: 36.4g
Dimension: 54.3*114.6*12mm(2.14*4.51*0.47″)
Manufacturer: Made in China

Features:
1. Compliant with Express Card 54 interface
2. Supports RAID 0, RAID 1, RAID 0+1 and JBOD
3. Dual channel master mode PCI supporting up to two S-ATA devices. The S-ATA drive transfer rate is capable up to 150 MB/s per channel
4. Supports internal PHY, with each PHY supporting up to two S-ATA devices
5. Complies with Serial ATA Specification Revision 1.0
6. Fulfill with RoHS

System Requirements:
1. Supports Windows 2000, ME, XP / Vista ready
2. Mac 8.6, 9.x, 10.1.2, and above

System Environment:
1. Operating Temperature: 0°C ~50°C
2. Operating Humidity: 10% ~90%RH
3. Operation Voltage: +3.3V ~+3.0V(+/-5% wide range power supply)
