产品名称:E-SATA转接卡(2口)
型  号:HT-E172
 点击查看大图片

The best solution of upgrading your system for SATA II enclosure.

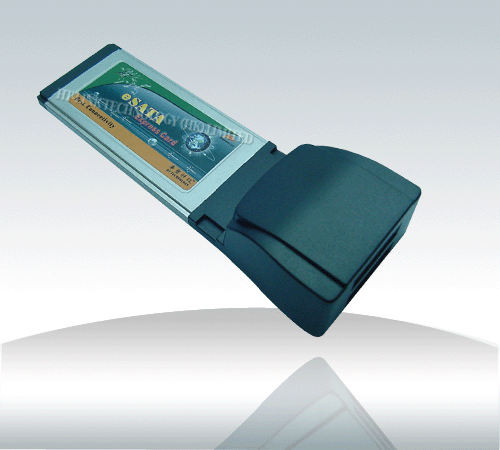

Product: eSATAII ExpressCard Adapter
Model: HT-E172
Interface: Express Card
Port: 2 external SATA ports
Weight: 33.4g
Dimension: 40.4*116*21.9mm(1.59 * 4.57* 0.86″)
Manufacturer: Made in China

Features:
1. Compliant with new Express Card 34/54 interface
2. Compliant with PCI Express Base Spec. Revision 1.0a
3. Compliant with Serial ATA AHCI (Advanced Host Controller Interface) Spec. Reversion 1.0
4. Compliant with Serial ATA II: Extensions to Serial ATA 1.0a Revision 1.1
5. eSATA II (eSATA port x 2), Data transfer rate up to 3 Gbps
6. Supports on-line 2.5 Gbps PCI Express specification
7. Supports a slave SMBus interface
8. Supports PC

System Requirements:
1. Windows 98/ME/2000/XP/2003/Vista 32/64 bit
2. Mac OS X 10.x
3. Linux 3, Linux 4

System Environment:
1. Operating Temperature: 0°C ~50°C
2. Operating Humidity: 10% ~90%RH
3. Operation Voltage: +3.3V ~+3.0V(+/-5% wide range power supply)
